Brief Introduction of MicroWeb MWR

1 . Introduction:

MicroWeb MWR is a series of wastewater treatment equipment, which are designed to remove pollutants from wastewater fast and efficiently using the proprietary MicroWeb technology of our company.

MicroWeb MWR can be widely used in the treatment of wastewater, especially in industry wastewater. After the treatment, COD removal rate can be over 90%, and all of COD, BOD, SS, and pH can reach the discharging standard.

MicroWeb MWR has the features of: high efficiency, easy operation and management, less investment, less space occupation, low operating cost and low maintenance cost.

2 . State of the Art:

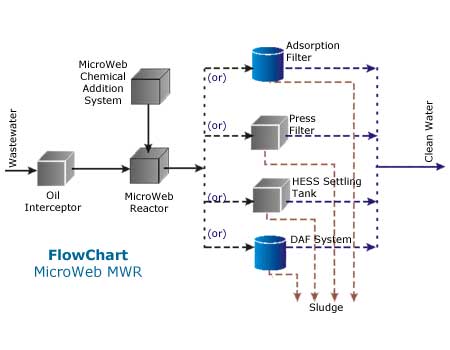

As showed in the flowchart, MicroWeb MWR is consisted of three or four parts: (1) Oil interceptor (used for high oil content wastewater) (2) MicroWeb reactor (3) Chemical addition system (4) Adsorption filter, or HESS settling tank, or Dissolved-air flotation system, or Press Filter.

MicroWeb MWR can be designed in various capacities for treating different quantity of wastewater. Details issued on the MicroWeb MWR Wastewater Treatment Packaged Equipment User Manual".

3 . Description of the equipment:

  1. Oil Interceptor
    It is used to remove the oil from the high oil content wastewater.
  2. MicroWeb reactor
    The reactor is the most important part in applying the MicroWeb technology. The main factors that determine the reactor design are the capacity, and the quality of wastewater.
  3. Adsorption filter
    If the ratio of SS/COD is less then 0.4, adsorption filter is used to process sludge-separation.
  4. HESS settling tank
    If the ratio of SS/COD is bigger then 0.4, HESS settling tank is used to process sludge-separation.
  5. DAF system
    In the case that the sludge is with a light specific gravity, DAF system is used to process sludge-separation.
  6. Press filter
    When there are large quantity of sludge come from the treatment, press filter is good for sludge-separation.

There are two patterns to control pH in MicroWeb MWR: one is manual, the other is automatic, depends on the request of customers.
